● Excellent wear resistance: Widen tread with closed shoulder design for exceptional stability and resistance to irrgular wear.
● Perfect drainage: Four vertical rib design for enhanced water ejection.
● Enhanced durability: Specially designed gem shaped reinforcing ribs on the groove bottom, effectively prevent groove cracking.
● Good self-cleaning: Stone ejectors built into grooves for exceptional stone drilling resistance and excellent tread life.
| Size | PR | Load Index Single - Dual | Speed Symbol | Standard Rim | Applicable Rim | Max Load (Kg) Single - Dual | Pressure (Kpa) Single - Dual | Overall Dim (mm) | Section Width (mm) | Tread Depth (mm) |
| 11R22.5 | 16PR | 146 - 143 | M | 8.25 | 7.50 | 3000 - 2725 | 830 - 830 | 1054 | 279 | 15.5 |
| 11R22.5 | 16PR | 148 - 145 | M | 8.25 | 7.50 | 3150 - 2900 | 850 - 850 | 1054 | 279 | 15.5 |
| 11R24.5 | 16PR | 149 - 146 | M | 8.25 | 7.50,8.25 | 3250 - 3000 | 830 - 830 | 1104 | 279 | 15.0 |
| 12R22.5 | 18PR | 152 - 149 | M | 9.00 | 8.25,9.00 | 3550 - 3250 | 930 - 930 | 1085 | 300 | 15.0 |
| 13R22.5 | 18PR | 154 - 151 | L | 9.75 | 9.0 | 3750 - 3450 | 830 - 830 | 1124 | 320 | 15.0 |
| 215 / 75R17.5 | 16PR | 127 - 124 | M | 6.00 | 6.75 | 1750 - 1600 | 830 - 830 | 767 | 211 | 13.0 |
| 255 / 70R22.5 | 16PR | 140 - 137 | M | 7.50 | 8.25 | 2500 - 2300 | 830 - 830 | 930 | 255 | 13.0 |
| 275 / 70R22.5 | 16PR | 148 - 145 | M | 8.25 | 7.50,8.25 | 3150 - 2900 | 900 - 900 | 958 | 276 | 14.0 |
| 275 / 80R22.5 | 16PR | 147 - 144 | M | 8.25 | 7.50,8.25 | 3075 - 2800 | 830 - 830 | 1012 | 276 | 15.0 |
| 285 / 75R24.5 | 16PR | 147 - 144 | M | 8.25 | 8.25 | 3075 - 2800 | 830 - 830 | 1050 | 283 | 15.0 |
| 295 / 60R22.5 | 18PR | 150 - 147 | M | 9.00 | 8.25,9.00 | 3350 - 3075 | 900 - 900 | 926 | 292 | 15.0 |
| 295 / 75R22.5 | 16PR | 150 - 147 | M | 9.00 | 8.25 | 3000 - 2725 | 830 - 830 | 1014 | 298 | 15.0 |
| 295 / 80R22.5 | 18PR | 152 - 149 | M | 9.00 | 8.25,9.00 | 3550 - 3250 | 900 - 900 | 1044 | 298 | 15.0 |
| 315 / 60R22.5 | 18PR | 152 - 148 | M | 9.75 | 9.00,9.75 | 3550 - 3150 | 900 - 900 | 950 | 313 | 15.0 |
| 315 / 70R22.5 | 18PR | 154 - 150 | M | 9.00 | 9.00,9.75 | 3750 - 3350 | 900 - 900 | 1014 | 312 | 15.0 |
| 315 / 80R22.5 | 18PR | 154-151 | M | 9.00 | 9.75 | 3750 - 3450 | 830 - 830 | 1076 | 312 | 15.0 |
| 315 / 80R22.5 | 20PR | 157 - 154 | M | 9.00 | 9.75 | 4125 - 3750 | 900 - 900 | 1076 | 312 | 15.0 |
| 385 / 65R22.5 | 20PR | 160 | L | 11.75 | 12.25 | 4500 | 900 | 1072 | 389 | 15.0 |

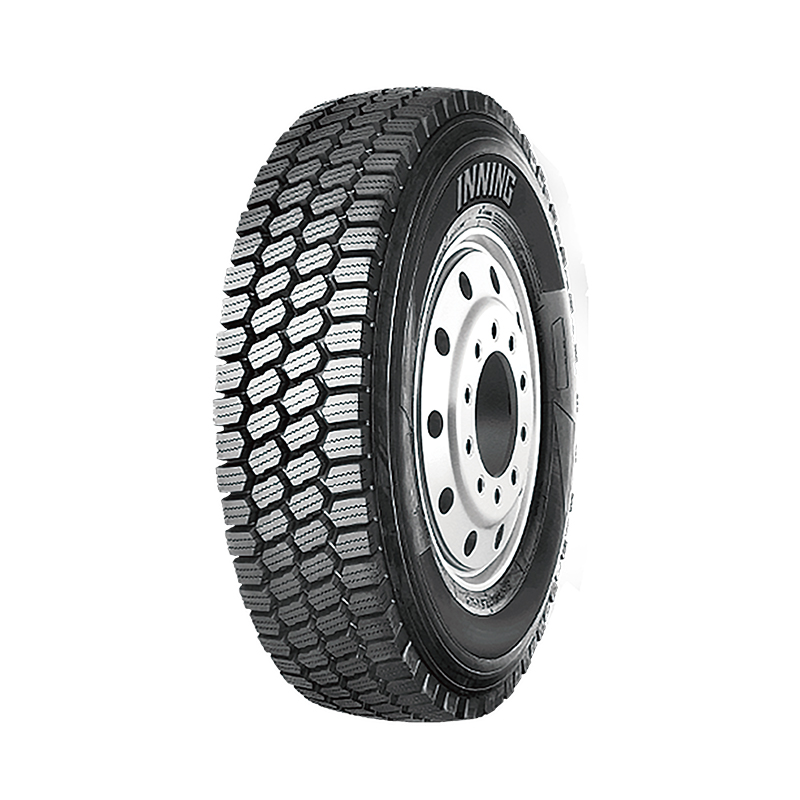

Driving wheel applied for on/off snow conditions. landy truck tires provide safety and performance for the winter season

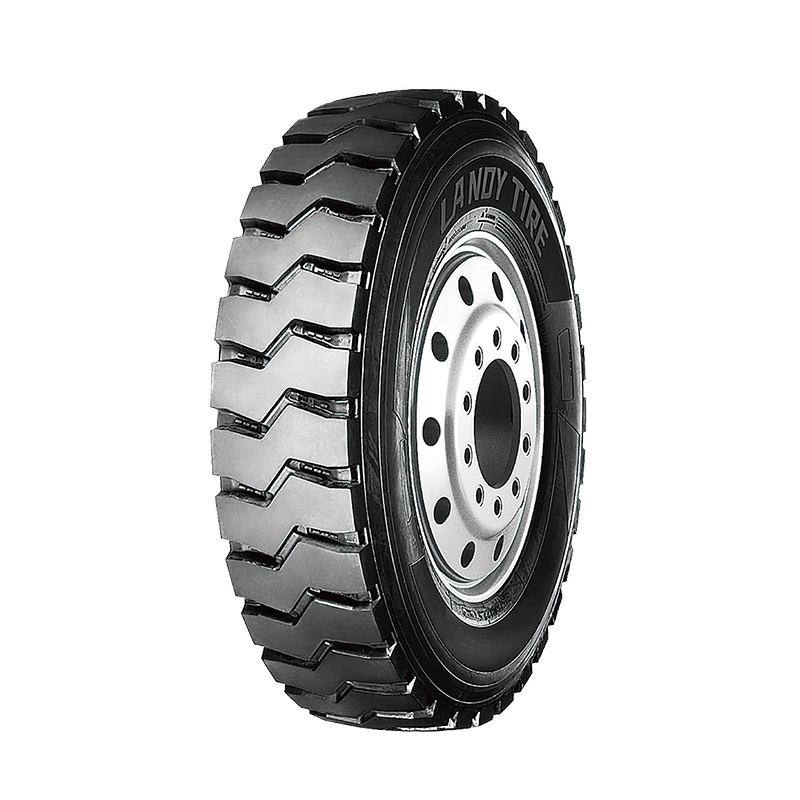

Designed for on and off-road service applications, especially in the severe conditions. Durable Off Road Truck Tires for Construction Vehicles.
